Non-oriented silicon steel lamination, known for its high isotropic magnetic permeability, low core loss, and excellent ductility, is vital in electrical applications such as motors, transformers, and generators. By understanding its benefits, including efficiency and cost-effectiveness, you can appreciate how it enhances the performance of these devices. Additionally, the blog explores the factors influencing the performance of non oriented silicon steel laminations and recent innovations including emphasizing advanced manufacturing techniques and sustainable practices. Finally, the blog provides valuable insights for selecting the appropriate material based on specific application needs. You will gain a comprehensive understanding of how to leverage this material to improve electrical device performance and reliability.
Non-oriented silicon steel lamination (NO silicon steel lamination) is made from non-oriented silicon steel, a type of electrical steel that does not have any directional properties in its magnetic characteristics, making this lamination suitable for applications where the magnetic field rotates or changes direction. It becomes a crucial material used in the manufacture of various electrical machines, including motors and other electrical devices like generators and transformers.

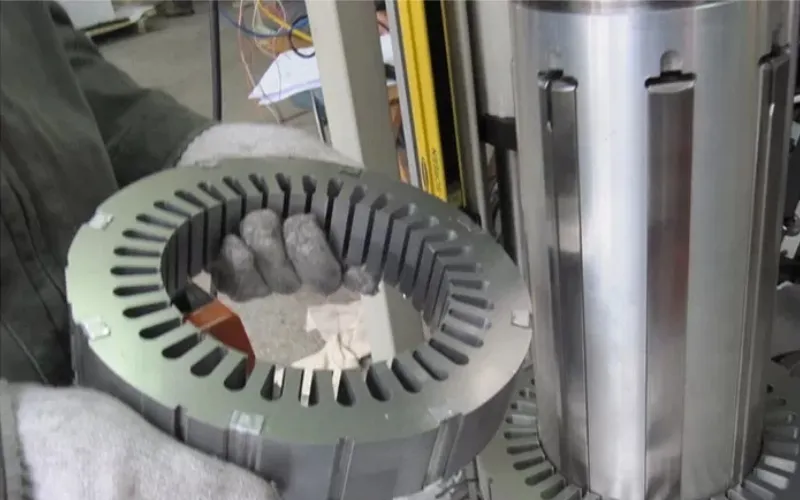

The usage of non-oriented silicon steel lamination in electrical motor applications presents several significant advantages, boosting the overall efficiency and effectiveness of electrical motors.
One of the key benefits is its consistent magnetic buildings in all directions, which is crucial for rotating equipment like electrical motors. This isotropic nature ensures that the electrical motors run effectively no matter the direction of the electromagnetic field, adding to improved energy conversion and minimized energy losses.
Another critical benefit is the reduced core loss connected with non-oriented silicon steel. Core loss, consisting of hysteresis and eddy current losses, straight influences the performance of electrical machines. The innovative metallurgical properties and controlled chemical structure of non-oriented silicon steel lamination reduce these losses, leading to enhanced motor efficiency and minimized functional costs.
Additionally, non-oriented silicon steel lamination deals with superb mechanical properties. Its high toughness and sturdiness make it appropriate for high-speed motor applications where mechanical anxiety is a problem. This effectiveness ensures certain longevity and reliability, lowering the demand for regular maintenance and substitutes.
Non-oriented silicon steel lamination is additionally helpful because of its cost-effectiveness. The manufacturing procedure for non-oriented silicon steel lamination is typically easier and more economical contrasted to grain-oriented silicon steel lamination. This affordability enables the widespread use of high-grade materials in electrical motor manufacturing, adding to the production of inexpensive and high-performance electrical motors.
The flexibility of non-oriented silicon steel lamination is an additional noteworthy advantage. It can be utilized in numerous motor layouts and applications, from small household appliances to large commercial makers. This adaptability makes it a favored option for makers aiming to systematize products throughout various lines of product.
Furthermore, the use of non-oriented silicon steel lamination in electrical motor laminations sustains environmental sustainability. Its efficiency in reducing energy losses converts to lower power consumption, adding to a reduction in greenhouse gas emissions. This lines up with worldwide initiatives to advertise energy-efficient innovations and reduce the ecological influence of industrial operations.
Non oriented silicon steel lamination is a good helper in motor and other electrical applications. But in actual usage, the performance of non-oriented silicon steel laminations is affected by several critical elements. Check to avoid them to make NGO lamination work effectively in your motor applications to the greatest extent.
Firstly, the chemical composition of the steel plays a considerable role. Silicon content, generally varying between 2-3.5%, is essential for decreasing the core losses and improving magnetic properties. Other elements such as lightweight aluminum and manganese also affect the magnetic performance and mechanical buildings of the steel.
Another vital factor is the lamination thickness. Thinner laminations are preferable as they reduce eddy current losses, therefore boosting efficiency. However, achieving thinner laminations needs sophisticated manufacturing strategies to keep mechanical stamina and lessen deformation during the punching and stacking procedures.
The grain size of the steel is also a key component. Better grain structures lead to enhanced magnetic properties, including lower hysteresis losses. Grain size can be controlled with exact annealing procedures throughout manufacturing, which additionally assists in stressing alleviation and boosts the overall magnetic performance of the laminations.
Surface insulation quality is another vital element. Appropriate insulation between laminations is essential to minimize eddy currents and decrease core losses. The insulation coating should be uniform and have sufficient electrical resistance and thermal stability to withstand operational conditions.
Furthermore, the production procedure itself, including methods like punching, cutting, and annealing, considerably influences the performance of non-oriented silicon steel laminations. Precision in these procedures ensures minimal burrs and distortions, which can or else bring about enhanced losses and minimized efficiency.
Finally, operating problems such as frequency and temperature affect the efficiency of these laminations. Higher operating frequencies can boost eddy current losses, while elevated temperature levels can affect the magnetic properties of the steel. Consequently, selecting the suitable grade of non-oriented silicon steel lamination based on specific application requirements is critical for enhancing effectiveness.
Non-oriented silicon steel lamination has actually seen significant advancements in recent times, driven by the need for greater effectiveness and efficiency in electrical devices.
Among one of the most noteworthy fads is the development of high-permeability grades of non-oriented silicon steel. These grades are engineered to minimize core losses and boost magnetic properties, making them optimal for high-frequency applications.
Advancements in the manufacturing process have also played an essential role. Advanced annealing methods and specific control of the silicon material have made it possible the manufacture thinner and a lot more consistent laminations. This not only improves the magnetic efficiency but also adds to the overall efficiency of electrical equipment.
| Advancement | Description | Effect |
| High-Permeability Grades | Developed to decrease core losses and boost magnetic properties. | Ideal for high-frequency applications, enhancing efficiency. |
| Advanced Annealing Techniques | Enhanced heat treatment procedures to generate thinner laminations. | Boosts performance and efficiency of electrical devices. |
| Precision in Silicon Content Control | Specific control of silicon degrees in steel production. | Outcomes in uniform laminations with far better magnetic properties. |
Another key trend is the combination of non-oriented silicon steel lamination with other advanced materials. This composite technique aims to integrate the benefits of different products, such as increased mechanical stamina and improved magnetic properties, to produce laminations that meet the required needs of modern-day electrical tools.
In addition, there is an expanding emphasis on sustainability in the manufacturing of non-oriented silicon steel laminations. Producers are taking on green processes and reusing methods to lessen the environmental effects. This includes the usage of recycled steel and the execution of energy-efficient manufacturing methods.
Research study and advancement remain to drive progressive advancements. Modern technologies, such as additive production, are being checked out for their possibility of revolutionizing the manufacturing of non-oriented silicon steel laminations. These innovations ensure to use of new levels of layout versatility and material effectiveness, leading the means for next-generation electric equipment.
| Trend | Description | Influence |
| Combination with Advanced Materials | Incorporating silicon steel with other products for enhanced properties. | Improved stamina and magnetic efficiency in laminations. |
| Sustainable Production Methods | Taking on eco-friendly procedures and reusing techniques. | Reduces ecological impact and advertises source effectiveness. |
| Additive Manufacturing | Exploring 3D printing for producing laminations. | Supplies layout flexibility and possible product cost savings. |
When picking and using non-oriented silicon steel laminations in jobs, several vital practices can ensure optimum performance and effectiveness.
1. Comprehending Material Specifications
Most importantly, it is vital to comprehend the material requirements. Non-oriented silicon steel lamination normally has 2-3% silicon and is refined to have a consistent grain structure. This results in regular magnetic buildings in all instructions. Recognizing the precise structure and grain structure is critical for making a notified selection.
2. Assessing Core Loss and Magnetic Permeability
Core loss and magnetic permeability are vital specifications that influence the effectiveness of electrical devices. Non-oriented silicon steel lamination is made to minimize core losses, which are triggered by hysteresis and eddy currents. Assessing these parameters can help in choosing a product that offers the very best efficiency for your specific applications.
3. Thickness and Insulation Coating
The thickness of the lamination and the sort of insulation coating are essential variables to consider. Thinner laminations generally result in lower eddy current losses. In addition, the insulation coating aids in avoiding brief circuits between laminations, boosting the total performance and efficiency of the electric gadget.
| Parameter | Factor to Consider |
| Core Loss | Minimize for boosted effectiveness |
| Magnetic Permeability | Make certain high leaks in the structure for far better performance |
| Thickness | Select thinner laminations to lower eddy current losses |
| Insulation Coating | Select the ideal finish to avoid short circuits |
4. Production and Processing Quality
The manufacturing and processing quality of the non-oriented silicon steel lamination is another critical variable. Excellent processing makes certain that the steel maintains its preferred properties throughout its use. Ensuring that the product is created by respectable manufacturers with rigid quality assurance steps can considerably impact the reliability and performance of the end item.
5. Application-specific Considerations
Finally, it is very important to take into consideration the detailed requirements of your application. Different electrical tools might have distinct demands that require particular buildings from the non-oriented silicon steel lamination. For example, high-speed motors might require laminations with a certain thickness and coating to attain optimal efficiency.
By sticking to these ideal techniques, you can effectively pick and use non-oriented silicon steel laminations in a range of jobs, ensuring high efficiency and dependability of the electrical devices they are used in.
