Laminated Silicon Steel Transformer Core: An Unseen Hero in Power Distribution

Transformers are fundamental components in the electrical power industry, playing a crucial role in the transmission and distribution of electrical energy. At the heart of these transformers lies the core, which is typically made from laminated silicon steel. This blog post delves into the significance of laminated silicon steel transformer cores, exploring their construction, benefits, and impact on transformer performance.

Understanding Transformer Cores

Transformer core is the central part of a transformer, providing a path for the magnetic flux. The core’s primary function is to support the magnetic field that transfers energy between the transformer’s primary and secondary windings. The efficiency and performance of a transformer are heavily influenced by the material and construction of its core.

Why Silicon Steel?

Silicon steel, also known as electrical steel, is an alloy of iron and silicon. The addition of silicon to steel significantly enhances its magnetic properties, making it an ideal material for transformer cores. The key benefits of silicon steel include:

– High Magnetic Permeability: Silicon steel has a high magnetic permeability, which means it can easily support the formation of a magnetic field. This property is crucial for efficient energy transfer in transformers.

– Low Core Losses: Core losses in transformers are primarily due to hysteresis and eddy currents. Silicon steel reduces these losses due to its high electrical resistivity and low hysteresis loss, leading to more efficient transformers.

– Mechanical Strength: Silicon steel provides the necessary mechanical strength to withstand the stresses and vibrations encountered during transformer operation.

The Need for Lamination

While silicon steel offers excellent magnetic properties, using solid steel for transformer cores would result in significant energy losses due to eddy currents. Eddy currents are loops of electrical current induced within the core material by the alternating magnetic field. These currents generate heat and lead to energy dissipation.

To mitigate eddy current losses, transformer cores are constructed using laminated silicon steel sheets. Lamination involves stacking thin silicon steel sheets, each coated with an insulating layer. This construction technique offers several advantages:

– Reduction of Eddy Currents: The insulating layer between the laminations prevents the flow of eddy currents, significantly reducing energy losses.

– Improved Efficiency: By minimizing eddy current losses, laminated cores enhance the overall efficiency of transformers, leading to lower operational costs and reduced heat generation.

– Enhanced Magnetic Properties: Lamination design helps maintain the magnetic properties of silicon steel, ensuring optimal performance of the transformer.

Construction of Laminated Silicon Steel Transformer Cores

The construction of laminated silicon steel transformer cores involves several main steps.

1. Material Selection

High-quality silicon steel sheets are selected based on their magnetic properties and thickness. The thickness of the laminations typically ranges from 0.23 mm to 0.35 mm.

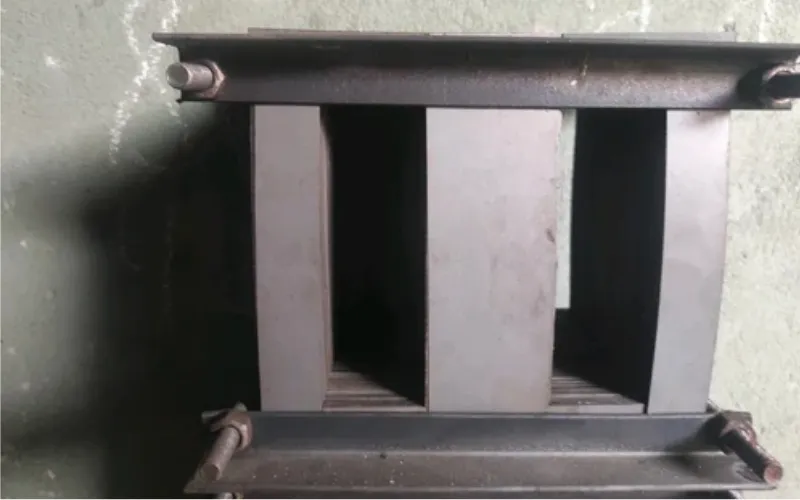

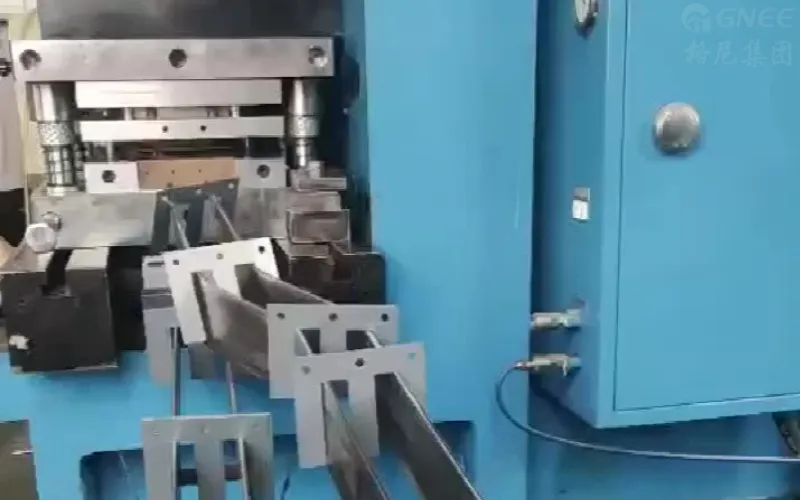

2. Cutting and Stamping

The silicon steel sheets are cut into the desired shapes and sizes using precision cutting and stamping techniques. The shapes are designed to form the core’s structure, such as E-shaped or I-shaped laminations.

3. Insulation Coating

Each silicon steel sheet is coated with an insulating layer, usually made of varnish or oxide. This creates a solid and monolithic coating that can prevent electrical contact between the laminations, reducing eddy current losses.

4. Stacking and Assembly

The coated laminations are stacked together to form the core. The stacking process ensures that the laminations are aligned correctly and tightly packed to minimize air gaps.

5. Core Clamping

The assembled core is clamped together using mechanical or adhesive methods to maintain its structural integrity and prevent movement during operation.

Benefits of Using Laminated Silicon Steel Transformer Cores

Laminated silicon steel transformer cores offer numerous benefits that contribute to the overall performance and efficiency of transformers:

1. Reduced Core Losses: The primary advantage of laminated silicon steel transformer cores is the significant reduction in core losses, including both hysteresis and eddy current losses. This reduction leads to higher efficiency and lower energy consumption.

2. Improved Thermal Performance: By minimizing energy losses, these cores generate less heat, improving the thermal performance of transformers. This results in longer operational life and reduced cooling requirements.

3. Enhanced Magnetic Properties: The lamination process preserves the magnetic properties of silicon steel, ensuring efficient magnetic flux conduction and optimal transformer performance.

4. Noise Reduction: Laminated silicon steel transformer cores also help reduce noise levels in transformers by minimizing magnetic vibrations and ensuring smoother operation.

5. Cost-effectiveness: Although the lamination process adds complexity to core manufacturing, the resulting efficiency gains and reduced energy losses make laminated silicon steel transformer cores a cost-effective choice for transformer design.

Applications of Laminated Silicon Steel Transformer Cores

Laminated silicon steel cores are used in a wide range of transformer applications, including:

1. Power Transformers: These transformers are used in power generation and distribution systems to step up or down voltage levels. Laminated silicon steel transformer cores ensure high efficiency and reliability in these critical applications.

2. Distribution Transformers: Used in electrical distribution networks, these transformers require efficient cores to minimize energy losses and ensure reliable power delivery to end-users.

3. Instrument Transformers: These transformers are used for measuring and monitoring electrical parameters. Laminated silicon steel transformer cores provide the accuracy and stability needed for precise measurements.

4. Specialty Transformers: Laminated silicon steel transformer cores are also used in specialty transformers, such as those used in medical equipment, industrial machinery, and renewable energy systems.

Future Trends and Innovations in Laminated Silicon Steel Transformer Cores

The demand for efficient and reliable transformers continues to grow, driven by the increasing need for electrical energy and the integration of renewable energy sources. As a result, there is ongoing research and development in the field of transformer core materials and construction techniques. Some of the future trends and innovations in laminated silicon steel transformer cores include:

1. Advanced Materials: Researchers are exploring new materials and alloys that offer even better magnetic properties and lower core losses than traditional silicon steel.

2. Improved Lamination Techniques: Advances in lamination techniques, such as laser cutting and precision stamping, are enhancing the quality and performance of laminated silicon steel cores.

3. Nanocrystalline Cores: Nanocrystalline materials are being investigated for their potential to reduce core losses further and improve transformer efficiency.

4. Sustainable Manufacturing: Efforts are being made to develop more sustainable manufacturing processes for transformer cores, reducing the environmental impact of production.

Conclusion

Laminated silicon steel transformer cores are a cornerstone of modern electrical power systems, providing the efficiency, reliability, and performance needed for effective energy transmission and distribution. By understanding the construction, benefits, and applications of these cores, we can appreciate their critical role in the electrical industry and the ongoing innovations that continue to enhance their performance. As technology advances, laminated silicon steel transformer cores will remain a vital component in the quest for more efficient and sustainable electrical power solutions.
