Machining Silicon Steel: Definitions, Operations, and Challenges

2024-01-12

Silicon steel is an alloy composed of iron, silicon, carbon, and other elements. Typically, the silicon content ranges from 1.5% to 4.5%, bestowing upon it a magnetic permeability of great magnitude and an electrical resistivity of commendable measure. Moreover, the addition of silicon also serves to reduce eddy current losses in electrical devices, rendering it a most valuable asset in electrical engineering applications. Therefore, machining silicon steel holds a pivotal position in the manufacturing of electrical devices.



What Is Silicon Steel?

Silicon steel, also known as electrical steel or transformer steel, is a type of alloy that is widely used in the electrical industry due to its magnetic properties. It is primarily composed of iron and silicon, with small amounts of carbon and other elements. The silicon content in silicon steel can range from 1.5% to 4.5%, which significantly enhances its magnetic permeability and electrical resistivity. This unique composition makes silicon steel an ideal material for manufacturing transformers, motors, generators, and other electrical devices.



What Is Machining Silicon Steel?

Machining silicon steel is a process that involves removing material from the workpiece to achieve the desired shape and dimensions. Traditionally, this process encompasses a range of operations, including turning, milling, drilling, and grinding. However, due to the unique properties of silicon steel, one must approach its machining with extra caution and care to ensure efficiency and accuracy.

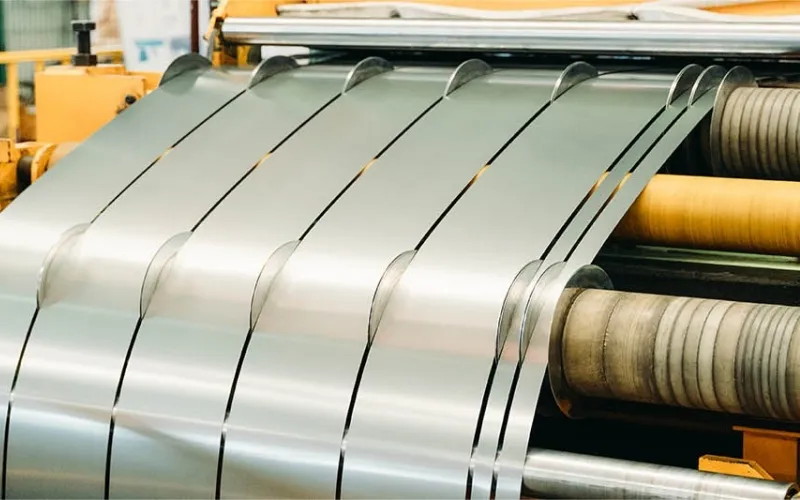

Machining Silicon Steel



Tools and Equipment Required for Machining Silicon Steel

To successfully machine silicon steel, one must possess the necessary tools and equipment. These may include the likes of carbide or high-speed steel cutting tools, precision measuring instruments, coolant systems, and machine tools that possess the strength and fortitude to handle the hardness and toughness of silicon steel. Proper selection and maintenance of these tools and equipment are of utmost importance to achieve the pinnacle of machining results.



How To Machine Silicon Steel?

When it comes to manipulating silicon steel, a variety of machining operations are customarily employed to shape and refine the material. These operations encompass turning and facing, milling and drilling, as well as grinding and polishing. Each of these techniques serves a specific purpose in the machining process, enabling the precise and accurate production of silicon steel components.

1. Turning and Facing

Turning and facing are fundamental machining operations utilized to eliminate material from the surface of silicon steel. Turning entails rotating the workpiece against a cutting tool, resulting in the removal of excess material and the creation of a desired shape or dimension. Conversely, facing concentrates on creating a smooth and flat surface on the end of the workpiece. Both turning and facing play a pivotal role in achieving the desired geometry and finish of silicon steel components.

2. Milling and Drilling

Milling and drilling operations are commonly employed to create precise holes, slots, and intricate shapes in silicon steel. Milling employs rotating cutting tools to eliminate material from the workpiece, resulting in the desired shape or feature. Drilling, on the other hand, involves creating holes by rotating a cutting tool in a circular motion. These operations are critical in the production of various silicon steel components, such as electrical motor cores or transformer laminations.

3. Grinding and Polishing

Grinding and polishing are indispensable operations in the machining of silicon steel, particularly when it comes to achieving a smooth and refined surface finish. Grinding entails the use of abrasive particles to eliminate small amounts of material and enhance the dimensional accuracy and surface quality of the workpiece. Polishing, conversely, employs finer abrasives to further augment the surface finish, resulting in a high-gloss appearance. These operations are frequently employed in the production of silicon steel components used in applications where low friction and improved aesthetics are of utmost importance.

How To Machine Silicon-Steel



Challenges in Machining Silicon Steel

When it comes to machining silicon steel, one must be prepared to face a multitude of challenges. These include:

1. High Hardness and Brittleness of Silicon Steel

Renowned for its exceptional hardness and brittleness, silicon steel is hard to shape. The very hardness that defines this material necessitates the utilization of specialized cutting tools that can withstand the immense forces at play. Moreover, the brittleness of silicon steel demands delicate handling and precise cutting techniques to avoid the perils of cracking or chipping during the machining process.

2. Heat Generation and Thermal Expansion During Machining

As the machining process commences, the friction between the cutting tool and the resilient silicon steel gives rise to the generation of heat. This heat, in turn, induces thermal expansion within the material, leading to potential dimensional inaccuracies and even damage. To ensure the attainment of precise machining results, it becomes imperative to employ effective cooling methods, such as the strategic use of coolants or lubricants, which dissipate the heat and minimize the perils of thermal expansion.

3. Risk of Work Hardening and Surface Damage

Yet another formidable challenge that confronts those engaged in machining silicon steel is the ever-present risk of work hardening and surface damage. The phenomenon of work hardening manifests itself when the material, due to the effects of plastic deformation, becomes significantly harder and more resistant to cutting. This, in turn, leads to escalated cutting forces, accelerated tool wear, and a lamentable reduction in machining efficiency. Additionally, the surface of silicon steel, delicate as it is, remains susceptible to unsightly scratches, bothersome burrs, and other forms of damage during the machining process. Consequently, the utmost care must be exercised in controlling cutting parameters and employing meticulous surface finishing techniques.

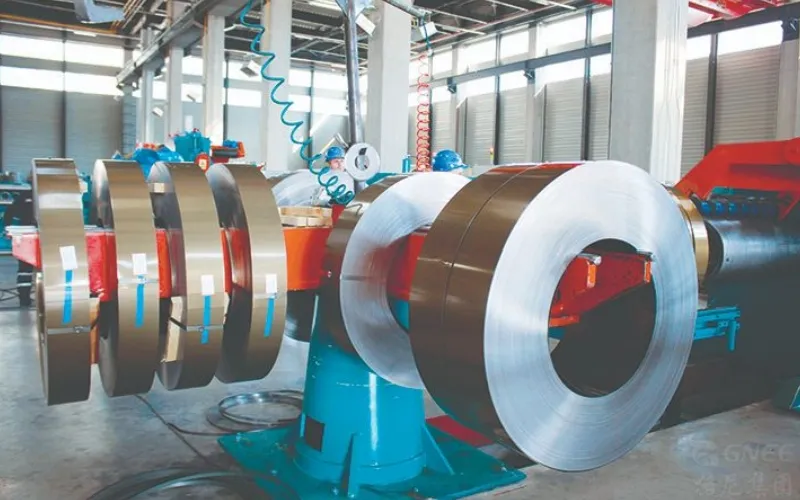

Electrical Steels
