Silicon Steel Core Transformers: Enhancing Efficiency in Electrical Systems

2024-06-21

Silicon steel core transformers are a crucial component of electrical power systems, playing a vital role in the efficient transmission and distribution of electricity. In this blog, we will delve into the world of silicon steel core transformers, exploring their construction, working principles, applications, and the significant impact they have on our daily lives.



Understanding Silicon Steel Core Transformers

Silicon steel, also known as electrical steel, is a soft magnetic material that is essential for the construction of transformers. The unique properties of silicon steel, including low core loss and high permeability, make it an ideal choice for transformer cores. When silicon steel is used to form the core of a transformer, it significantly reduces energy losses during the transformation process, resulting in higher efficiency and reduced operating costs.

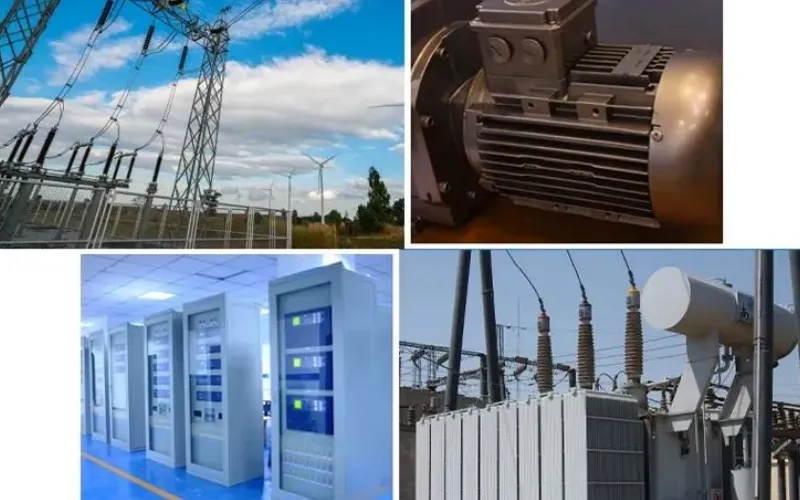

Transformers



Manufacturing Process of Silicon Steel Core Transformers

The manufacturing process of silicon steel for transformer cores is intricate and involves several key steps to ensure the material meets the required magnetic and physical properties. Here’s a detailed look at each stage:

1. Melting and Casting

Ingredients: The process begins with the combination of iron, silicon, and other elements such as aluminum and manganese in a furnace.

Melting: These components are melted together at high temperatures to form an alloy.

Casting: The molten alloy is then cast into thick slabs, which are allowed to cool and solidify.

2. Hot Rolling

Heating: The slabs are reheated to a specific temperature to make them malleable.

Rolling: While hot, the slabs are passed through a series of rollers that reduce their thickness and extend their length, enhancing the grain structure of the steel.

3. Cold Rolling

Further Thickness Reduction: After hot rolling, the steel is cooled and then re-rolled at room temperature to achieve even thinner gauges necessary for transformer cores.

Texture Development: This step is crucial for developing the desired grain orientation and surface texture, which significantly impacts the magnetic properties.

4. Annealing

Heat Treatment: Cold-rolled silicon sheets are subjected to annealing in a controlled atmosphere furnace to relieve internal stresses and improve the crystalline structure.

Decarburization: This stage often includes a decarburization step to remove carbon, which can adversely affect the electrical properties of the steel.

5. Insulating Coating

Application: After annealing, an insulating coating is applied to the surface of the steel. This coating helps to reduce eddy currents by electrically isolating individual sheets from each other when stacked in the transformer core.

Curing: The coating is cured at high temperatures to form a thin and durable layer that adheres to the steel surface.

6. Cutting and Assembling

Cutting: The coated silicon steel sheets are then precision-cut into specific shapes, often E and I shapes, which are used to assemble the core.

Stacking: These cut pieces are stacked in alternating layers to form the core of the transformer. The arrangement is designed to minimize gaps and optimize magnetic flux distribution.

7. Final Assembly

Core Assembly: The silicon steel core is assembled with other transformer components, such as windings and insulation.

Testing: The completed transformer is then tested to ensure it meets all operational specifications and safety standards.

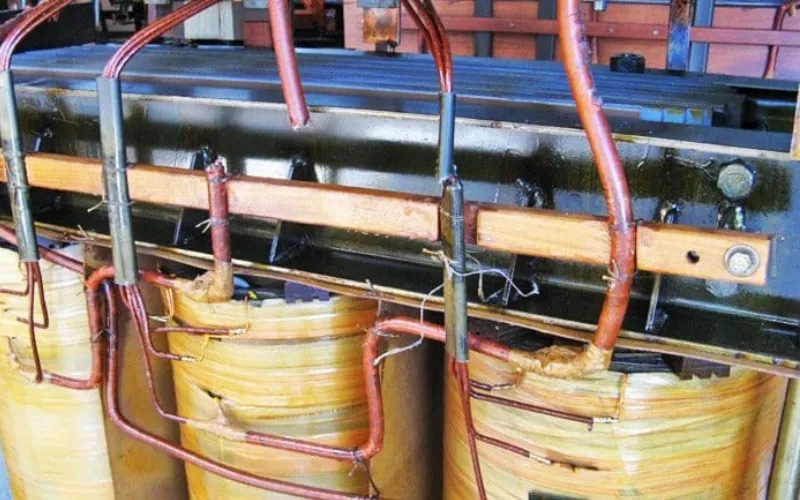

Construction of Silicon Steel Core Transformers



Working Principles of Silicon Steel Core Transformers

The operation of a silicon steel core transformer is based on the principles of electromagnetic induction. When an alternating current flows through the primary winding of the transformer, it creates a changing magnetic field within the core. This changing magnetic field induces a voltage in the secondary winding, allowing for the efficient transfer of electrical energy from one circuit to another. The use of silicon steel in the core ensures that the magnetic flux is effectively contained, minimizing energy losses and maximizing efficiency.



Advantages of Using Silicon Steel Core Transformers

Silicon steel cores offer several advantages over other core materials:

1. Reduced Energy Losses: The high electrical resistivity of silicon steel minimizes eddy current losses, which are proportional to the square of the material’s thickness and inversely proportional to its resistivity.

2. Improved Efficiency: Silicon steel cores operate with high magnetic permeability, facilitating efficient magnetic flux distribution and reducing hysteresis losses.

3. Cost-effectiveness: Despite the initial cost, the long-term energy savings provided by reduced losses make silicon steel core transformers economically advantageous.

4. Durability and Reliability: Silicon steel’s robustness enhances the longevity and reliability of transformers, crucial for critical power infrastructure.



Silicon Steel Core Transformers: Applications in Electrical Engineering

Silicon steel core transformers are integral in various applications:

1. Power Transformers: Used in power generation and distribution to step up or down voltage levels efficiently.

2. Distribution Transformers: Common in residential and commercial settings for voltage regulation to ensure safe electricity supply.

3. Specialty Transformers: Employed in applications requiring precise voltage control and minimal losses, such as in medical equipment and industrial machinery.

HGO Transformers



Silicon Steel Core Transformers: Impact on Energy Efficiency and Sustainability

The use of silicon steel core transformers has a significant impact on energy efficiency and sustainability. By minimizing energy losses during the transformation process, these transformers contribute to the overall efficiency of electrical power systems. This, in turn, reduces the consumption of natural resources and lowers greenhouse gas emissions associated with electricity generation. As the world continues to focus on sustainable energy solutions, silicon steel core transformers play a critical role in promoting a greener and more environmentally friendly approach to power distribution.



Silicon Steel Core Transformers: Future Trends and Innovations

The transformer industry, particularly in the realm of silicon steel cores, is poised for significant advancements driven by the need for more efficient, durable, and environmentally friendly solutions. Here are some of the key trends and innovations that are likely to shape the future of silicon steel core transformers:

1. Improved Material Properties

Higher Silicon Content: Increasing the silicon content beyond the current 3-4% could further reduce core losses. Research is ongoing to overcome the brittleness and manufacturing challenges associated with higher silicon content.

Nanocrystalline Cores: There is a growing interest in using nanocrystalline materials, which can offer superior magnetic properties, including higher permeability and lower core losses at high frequencies.

2. Advanced Manufacturing Techniques

Laser Cutting & 3D Printing: These technologies could revolutionize the way transformer cores are manufactured, allowing for more precise cuts and complex shapes that reduce gaps and improve efficiency.

Continuous Processing: Innovations in continuous casting and rolling processes could lead to more consistent material properties and reduced manufacturing costs.

3. Smart Transformers

Integration with IoT: Future transformers may incorporate sensors and IoT connectivity to monitor performance and predict maintenance needs, enhancing reliability and lifespan.

Self-healing Technologies: Research into self-healing materials could lead to transformers that automatically repair minor damages, reducing downtime and maintenance costs.

4. Sustainability Initiatives

Recycling and Reuse: As environmental regulations tighten, there will be a stronger focus on recycling used silicon steel and employing sustainable manufacturing practices.

Alternative Materials: Research into less resource-intensive materials that can mimic or surpass the properties of silicon steel could reduce the environmental impact of transformer production.

5. Energy Efficiency Regulations

Stricter Standards: With global emphasis on energy efficiency, new regulations are likely to set higher performance standards for transformers, driving innovation in core materials and design to reduce losses.

Tiered Efficiency Levels: Similar to appliances, transformers may see tiered efficiency levels, pushing manufacturers to continually improve their designs.

6. Hybrid Core Technologies

Combining Materials: Future designs may use a combination of different core materials, each optimized for specific performance aspects, to achieve overall better performance.

Modular Design: Transformers with modular cores that can be easily upgraded or replaced as technological advances become more common.

Silicon Steel Core Transformers 1



Conclusion

Silicon steel core transformers represent a cornerstone of modern electrical engineering, enabling the efficient and reliable distribution of electrical power across various sectors. Their unique properties, construction, working principles, and applications underscore their pivotal role in shaping the energy landscape. As we continue to embrace sustainable energy practices, silicon steel core transformers will remain at the forefront of innovation, driving the evolution of efficient and environmentally conscious power systems.
