2024-05-22
Understanding the hysteresis loop of silicon steel is crucial for anyone in the electrical industry. This blog explores the factors that impact the hysteresis loop in silicon steel and methods to enhance it can provide valuable insights for engineers and researchers. By understanding how to control variables like alloy composition, grain size, and heat treatment, individuals can tailor the magnetic properties of silicon steel to meet specific requirements in electrical engineering applications, ultimately leading to more efficient and reliable devices.
Key Points
– Understanding the Hysteresis Loop in Magnetic Materials
– Evaluating the Hysteresis Loop of Silicon Steel
– Factors Impacting the Hysteresis Loop in Silicon Steel
– Methods to Enhance the Hysteresis Loop in Silicon Steel
The hysteresis loop is a basic principle in the research study of magnetic materials, giving a critical understanding of their magnetic properties and habits.
When a ferromagnetic material is subjected to a differing electromagnetic field, the connection between the magnetic flux density (B) and the magnetic area stamina (H) does not adhere to a basic straight course. Instead, it traces out a bent curve referred to as the hysteresis loophole. This loop is important for comprehending numerous magnetic features, such as coercivity, retentivity, and power losses within the material.

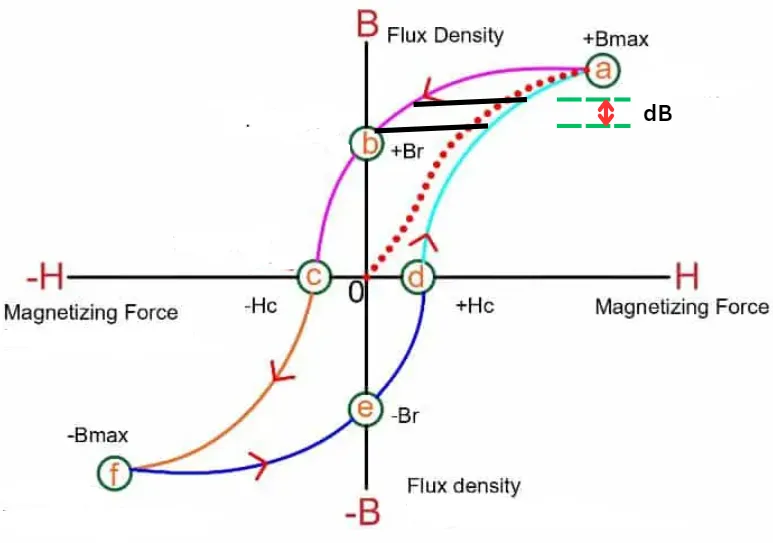

The hysteresis loop is generated by applying an alternating magnetic field to a sample of the material. At first, as the magnetic area stamina boosts from absolutely no, the magnetic domains within the material align with the area, creating a fast rise in magnetic flux density. This preliminary path is known as the magnetization contour. As soon as the product gets to saturation, a lot of the magnetic domains are aligned, and more rises in magnetic area stamina produce little adjustment in the changing thickness.
As the used magnetic field is decreased to no, the product preserves some magnetization because of the placement of the domain names. This recurring magnetism is called retentivity or remanence. When the magnetic field is reversed, it opposes the first magnetization, and the magnetic change density lowers. The area stamina needed to decrease the changing density to no is recognized as the forceful force or coercivity. As the reversed area toughness continues to enhance, the product at some point gets to unfavorable saturation.
Reversing the area once more causes a similar yet contrary process, tracing out the full hysteresis loop. The area enclosed by this loop stands for the energy shed throughout one cycle of magnetization and demagnetization, primarily due to the lag between the adjustments in magnetic area strength and change thickness. These losses, referred to as hysteresis losses, are crucial to consider the effectiveness of magnetic materials, specifically in applications entailing alternating currents (AIR CONDITIONING).
The sizes and shape of the hysteresis loophole are a sign of the magnetic properties of the product. For circumstances, a slim loop signifies reduced hysteresis losses and is desirable in products used for transformer cores and other electric devices where performance is critical. On the other hand, a vast loop shows high power loss per cycle and is particular to materials used in long-term magnets, where a solid and steady magnetic field is needed.
In a word, the hysteresis loop gives an in-depth visual depiction of a magnetic material’s reaction to a rotating magnetic field, encapsulating key properties such as retentivity, coercivity, and energy losses. Recognizing these properties is vital for maximizing the efficiency of magnetic material in various technical applications.
The hysteresis loophole of silicon steel is an essential aspect to think about when examining its magnetic properties. This loop graphically represents the connection between the magnetic field strength (H) and the magnetic change thickness (B) within the material. Understanding the nuances of this loophole is vital for maximizing the performance of silicon steel in different applications, particularly in electrical engineering.
The hysteresis loophole is defined by numerous crucial parameters: the forceful force, the remanence, and the saturation magnetization. The coercive pressure is the intensity of the used electromagnetic field needed to reduce the magnetization of the product to zero after it has been allured to saturation. The remanence is the degree of recurring magnetization left in the product when the external magnetic field is eliminated. The saturation magnetization is the optimum level of magnetization that the material can accomplish in the existence of an exterior magnetic field.
Silicon steel shows a narrow hysteresis loop compared to other magnetic materials, which represents lower hysteresis losses. This characteristic is especially beneficial for applications in transformers and electrical electric motors, where energy efficiency is critical. The addition of silicon to steel increases the electric resistivity of the material, which lowers eddy current losses and enhances the magnetic efficiency by decreasing the overall power dissipation during the magnetization and demagnetization cycles.
The hysteresis loop in silicon steel is affected by a variety of elements that can substantially affect its magnetic properties. These elements are critical to comprehending just how to maximize the efficiency of silicon steel in useful applications. Here are several of the major variables:
The chemical composition of silicon steel, specifically the percent of silicon content, plays an important function in fitting the hysteresis loophole. Higher silicon content normally improves electric resistivity and lowers core losses, but it can additionally make the material much more breakable. The regular silicon content varies from 1.5% to 3.5%, with 3% being a common standard for a lot of applications.
Grain size in silicon steel influences the coercivity and, subsequently, the hysteresis loop. Finer grains often tend to reduce the coercivity, leading to a narrower hysteresis loop, which is preferable for lowering energy losses. This is achieved with controlled annealing procedures that enable the growth of consistently sized grains.
The structure of magnetic domain names in silicon steel is crucial to the hysteresis behavior. Methods such as domain refinement can be employed to control domain wall surfaces and decrease losses. Domain refining practices include laser scribing and mechanical scribing, which introduce controlled disturbances in the domain name structure to boost performance.
The thickness of silicon steel also affects the hysteresis loophole. Thinner silicon steel normally helps in lowering eddy current losses and hence narrows the hysteresis loop. Nevertheless, making thinner silicon steel can be difficult and might increase manufacturing expenses.
Heat treatment procedures such as annealing are vital in identifying the final magnetic properties of silicon steel. Correct annealing can ease interior anxieties and boost magnetic domain name placement, thereby optimizing the hysteresis loop. The temperature and duration of heat treatment must be meticulously managed to achieve the preferred properties.
Impurities in silicon steel, such as carbon, sulfur, and oxygen, can have detrimental results on the hysteresis loop. These impurities can bring about boosted core losses and deteriorate the total magnetic performance. For that reason, high-purity basic materials and tidy production procedures are important to reduce these impacts.
Mechanical stress can change the magnetic characteristics of silicon steel by introducing extra energy barriers to domain wall surface motion. Stress and anxieties can arise throughout manufacturing processes such as rolling, marking, and cutting. Stress-relief annealing can be employed to mitigate these impacts and keep a beneficial hysteresis loophole.
The ambiance in which annealing is performed can affect the hysteresis loophole. For example, annealing in a hydrogen environment can aid in decreasing oxidation and enhance the magnetic properties of silicon steel. Managing the structure of the annealing atmosphere is important for accomplishing ideal performance.
| Factors | Effect on Silicon Steel Hysteresis Loop |
| Chemical Composition | Figures out resistivity and brittleness; greater silicon material minimizes core losses |
| Grain Size | Smaller grains reduce coercivity and slim the hysteresis loophole |
| Magnetic Domain Structure | Domain name improvement decreases losses and enhances the hysteresis loop |
| Thickness | Thinner silicon steel lower eddy current losses |
| Heat Treatment | Appropriate annealing enhances domain name placement and magnetic properties |
| Impurities | Reducing contaminations lowers core losses and improves efficiency |
| Mechanical Stress | Stress-relief annealing can alleviate unfavorable impacts on the hysteresis loop |
| Annealing Environment | Managing ambiance structure enhances magnetic properties |
The hysteresis loop of silicon steel plays a vital role in establishing its performance in electric design applications. Maximizing this loop entails several approaches that improve the magnetic properties of silicon steel, therefore boosting performance and minimizing power losses. Listed below, we explore numerous techniques to accomplish such optimization.
One of the primary techniques to maximize the silicon steel hysteresis loophole is by changing the alloy composition. Adding aspects such as silicon to the steel matrix considerably reduces core losses. Typical silicon content ranges from 2.5% to 3.5%. Greater silicon content decreases the coercivity and minimizes eddy current losses as a result of its high electric resistivity.
| Silicon Content (%) | Core Loss Reduction (%) |
| 2.5 | 15 |
| 3.0 | 20 |
| 3.5 | 25 |
One more effective method is to manage the grain size of silicon steel. Huge grains lower the number of grain limits, which in turn lowers the magnetic domain name wall power and hence the hysteresis loss. Strategies such as additional recrystallization can be employed to achieve an optimal grain size.
Annealing is crucial in alleviating interior stress and anxieties and enhancing magnetic properties. An appropriately managed annealing procedure can improve the magnetic permeability and decrease coercivity. High-temperature annealing complied with by slow air conditioning is typically employed to optimize the hysteresis loop.
The crystallographic appearance of silicon steel dramatically affects its magnetic properties. Methods such as cold rolling and annealing can straighten the grains in a favorable positioning, improving the magnetic efficiency and reducing hysteresis loss. The goal is to achieve a high level of <100> appearance.
Applying surface coatings to silicon steel can lower eddy current losses and enhance general efficiency. Coatings made from materials like phosphates and organic compounds give electrical insulation, which aids in minimizing inter-laminar losses and optimizing the hysteresis loophole.
Maximizing the magnetization procedure entails using sophisticated strategies such as domain name improvement. Laser scribing or mechanical scribing techniques can be employed to refine the magnetic domain names, thereby lowering hysteresis loss. This procedure aids in producing smaller-sized and more consistent magnetic domain names, resulting in a narrower hysteresis loophole.
Integrating sophisticated production techniques, such as thin silicon steel manufacturing and precision cutting, can dramatically optimize the hysteresis loop. Ultra-thin silicon steel decreases eddy current losses, and precision cutting decreases stress-induced magnetic degradation.
| Method | Impact on Hysteresis Loophole |
| Thin Silicon Steel | Reduces Eddy Current Losses |
| Precision Cutting | Reduces Stress-Induced Degradation |
Ongoing research and technological innovations in the area of silicon steel production are continuously offering new techniques to maximize the hysteresis loop. Innovations in nanotechnology, for instance, offer prospective developments in producing more effective silicon steel with premium magnetic properties.
1. What is silicon steel hysteresis loop?
The hysteresis loop is a graphical representation of the relationship between the magnetic field strength (H) and the magnetic flux density (B) in silicon steel. It provides insights into the material’s magnetic behavior, including core losses and efficiency. Factors like silicon content, grain orientation, and processing influence the shape and area of the hysteresis loop.
2. What factors affect the hysteresis loop in silicon steel?
Factors such as chemical composition, grain size, magnetic domain structure, thickness, heat treatment, impurities, mechanical stress, and annealing atmosphere can significantly impact the hysteresis loop in silicon steel. Controlling these factors is essential for optimizing the material’s magnetic properties.
3. How can the hysteresis loop in silicon steel be optimized?
Methods to optimize the hysteresis loop in silicon steel include adjusting alloy composition, controlling grain size, employing annealing processes, using texturing techniques, applying surface coatings, optimizing magnetization processes, incorporating advanced manufacturing techniques, and continuous technological improvements. These methods help enhance magnetic properties and reduce energy losses.
