Silicon Steel Slitting Line: Efficiency & Precision

2024-05-13

Understanding the intricacies of silicon steel slitting lines is vital for manufacturers in the electrical steel industry. This blog delves into the processes, advancements, and maintenance tips essential for achieving optimal efficiency and product quality in terms of silicon steel slitting lines. Whether optimizing production lines or selecting the most suitable equipment, this blog offers valuable guidance for stakeholders aiming to excel in the production of silicon steel products.



Overview of Silicon Steel Slitting Lines

Silicon steel slitting lines are specific equipment used in the handling of silicon steel, a key material in the manufacture of transformers, motors, and numerous other electromagnetic devices. These lines are created to exactly slit silicon steel coils into narrower silicon steel strips, which are crucial for numerous electric and manufacturing applications. The efficiency and precision of slitting lines considerably affect the total high quality of the products, making the technology important for suppliers in the electrical steel market.

Processes Description
Uncoiling The huge silicon steel coil is packed and unwound for processing.
Slitting Rotary blades slit the steel into narrower strips according to specifications.
Recoiling The slit strips are meticulously recoiled for additional handling or delivery.

It is very important to note that the top quality of the slitting procedure is influenced by numerous elements, including the accuracy of the machinery used, the problem with the blades, and the control systems controlling the line. Additionally, the mechanical and electronic assimilation in modern-day slitting lines enables higher automation and precision, lowering the likelihood of human error and boosting manufacturing effectiveness.



Key Components of Silicon Steel Slitting Line

The line typically consists of various components, including a hydraulic expansion decoiler, storage pits, slitting machine, scrap winder, guiding & tension device, recoiler, unloading car, hydraulic system, and control system. Each component plays a pivotal role in the efficiency and quality of the slitting process.

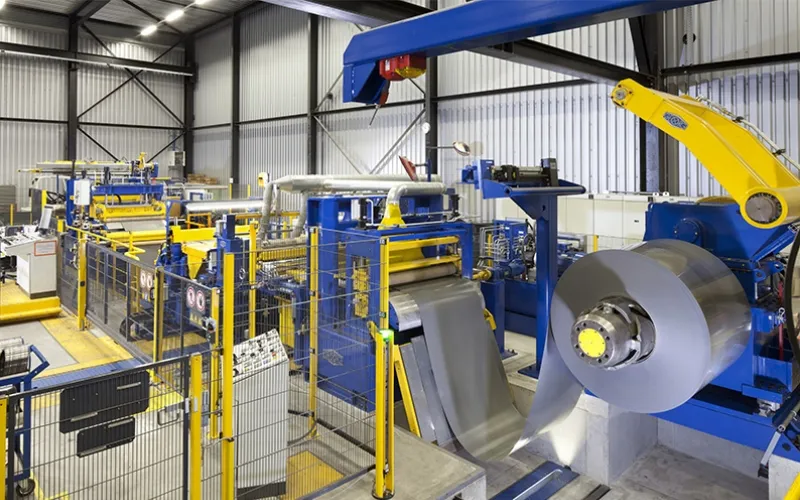

Silicon Steel Slitting Line



The Slitting Process for Silicon Steel

The slitting procedure for silicon steel is an essential procedure. This procedure includes the cutting of vast silicon steel coils into narrower strips, which are then used to construct the cores of electrical devices. The key goal is to achieve high dimensional precision and marginal product waste. The processes include:

1. Prep work and Handling of Material

Initially, the silicon steel coils are very carefully filled onto the uncoiler of the slitting line. Making sure the steel is devoid of any surface problems and is properly lined up is crucial for high-quality slits. The product has to be managed delicately to avoid any kind of flexing or distortion that can impact the end product’s magnetic properties.

2. Slitting Setup

The core element of the slitting procedure entails the arrangement of the slitter maker, which includes the selection and setup of knives based on the desired strip width. Precise spacing of the knives is essential to stop damage to the material and to make certain each slit strip satisfies the defined tolerances.

3. Slitting Operation

During the slitting procedure, the silicon steel is passed with the blades at a controlled speed. The quality of the cut and the speed of the operation are affected by variables such as knife sharpness, material thickness, and tensile strength. Operators need to check these variables continuously to preserve the stability of the silicon steel’s magnetic properties.

4. Quality Control

As soon as the slitting is over, the narrow strips are checked for dimensional accuracy and surface high quality. Any discrepancies from the specified tolerances are attended to right away to ensure the product’s suitability for more production processes. The strips are then recoiled, all set for shipment or further handling.

Processes Description Secret Criteria
Material Loading Packing of silicon steel coils onto the slitting line. Coil alignment, surface evaluation
Blade Setup Plan of slitting knives according to needed strip size. Knife sharpness, spacing precision
Slitting Procedure Reducing the coil into narrower strips. Speed, material tension, knife condition
Top-quality Control Examination of slit strips for high quality and accuracy. Dimensional resistances, surface top quality



Advancements in Silicon Steel Slitting Technology

Recently, silicon steel slitting technology has seen substantial advancements, boosting both effectiveness and precision in the production of silicon steel strips made use of in different applications, especially in transformers and electric motors. These technical improvements have transformed the way suppliers come to the slitting process, offering a mix of high-speed operations with meticulous precision.

1. Integration of Automation and Control Systems

Among one of the most significant innovations in the innovation is the combination of automation and advanced control systems. Modern silicon steel slitting lines are geared up with CNC (Computer Numerical Control) systems that permit exact adjustments to the slitting specifications based on real-time feedback from the assembly line. This precision ensures minimal material wastefulness and optimal usage of sources, which is crucial in keeping expense efficiency and ecological sustainability.

2. Improved Blade Products and Layer Technologies

Improvements in the products made use of for the cutting blades have played a critical role. The adoption of high-speed steel and carbide blades has extended the life expectancy of these important components dramatically. Additionally, the development of advanced coatings, such as titanium nitride, has enhanced the wear resistance of the blades, minimizing downtime for blade modifications and maintenance.

3. Enhanced Slit Width Tolerances

Technical enhancements have also brought about far better slit width tolerances, which are vital for the performance of the end items. The most up-to-date slitting lines can attain incredibly tight resistances, which is specifically essential for industries where precision is extremely important. Making use of laser-guided dimension systems and automatic side control has facilitated these renovations, ensuring that each slit coil satisfies rigorous high-quality criteria.

4. Increased Line Speeds and Efficiency

The speed of silicon steel slitting lines has also been boosted, thanks to better electric motor and drive systems. These systems enable the lines to run at greater rates without compromising the top quality of the slit sides. Increased line rate equates to greater throughput, allowing for better volumes of silicon steel to be refined within shorter durations.

5. Environmental Effect Decrease

Finally, modern slitting lines are designed with a higher concentration on decreasing environmental influence. This consists of enhancements in energy performance and decreases in scrap products. Effective use of basic materials and power not only reduces operational prices but also lines up with international sustainability goals, making it a vital element of modern-day production methods.

Slitting and Cutting



Maintenance Tips for Silicon Steel Slitting Lines

Maintaining silicon steel slitting lines is crucial to achieving certain operational performance, decreasing downtime, and expanding the lifespan of the machinery. Appropriate maintenance entails numerous vital tasks, each targeting particular components and features of the slitting line.

1. Routine Inspection and Cleaning

Normal inspection and cleansing are the structures of effective maintenance. It is necessary to inspect all mechanical and electric components periodically for indicators of wear, misalignment, or damage. Pay unique interest to the slitting knives, as they are the main to the slitting process. Dirt, particles, and steel filings can gather on the blades and various other parts of the machine, possibly triggering damage or decreasing efficiency.

2. Lubrication of Relocating Parts

Lubrication lowers friction between relocating components, which is essential in protecting against early damage. Use the advised kind and quantity of lubricating substance for every component according to the supplier’s standards. Make sure that all bearings, equipment, and rollers get consistent lubrication to maintain smooth operation.

3. Blade and Tooling Upkeep

The condition of the slitting blades straight affects the top quality of the slit material. Blades must be frequently checked for intensity and replaced or resharpened when needed. Maintaining the blades in ideal problems helps in attaining accurate cuts and reduces the danger of damage to the silicon steel.

4. Calibration and Alignment

Appropriate calibration and placement are necessary for exact slitting. Misalignment can lead to uneven slitting, material waste, and maker stress. Regularly check and adjust the placement of the slitting blades, spacers, and various other important elements to ensure they are in the correct placement.

5. Preventive and Anticipating Upkeep

Carrying out a preventive maintenance routine can aid in identifying potential problems before they become crucial. Predictive upkeep, which uses information from maker sensing units and historical efficiency, can better enhance upkeep tasks by forecasting when a component is likely to fail.

6. Training

Making sure that all operators and maintenance workers are trained is vital to maintaining the silicon steel slitting line properly. Supply normal training sessions and preserve upgraded paperwork on maintenance procedures and routines.

7. Electrical System Checks

Regularly check the electric parts of the slitting line, including electric motors, controllers, and wiring. Check for indicators of overheating, wear, or loose links, which might cause operational failures or safety and security threats.

Part Upkeep Activity Frequency
Slitting Blades Evaluate and resharpen Regular monthly
Bearings and Rollers Oil and evaluate for wear Bi-weekly
Electric Equipments Evaluate for damage and examination functionality Quarterly
Placement and Calibration Examine and readjust as needed Every 6 months



Choosing the Right Silicon Steel Slitting Line for Your Needs

Picking the ideal silicon steel slitting line is critical for making certain performance, accuracy, and long life in your manufacturing procedures. A well-selected slitting line can significantly enhance the top quality of the slits and lower waste, making it an indispensable tool for producers collaborating with silicon steel. Below, we’ll lay out several vital variables to consider when picking a silicon steel slitting line.

1. Recognizing Your Manufacturing Needs

Before purchasing a slitting line, it’s vital to understand your specific production requirements. Consider the density and size of the product, the slit size demands, and your manufacturing volume. These aspects will certainly assist figure out the type of slitting line that’s ideally matched for your procedures.

2. Key Specifications to Take Into Consideration

When examining different slitting lines, numerous specs are critical:

Specification Description
Max/Min Coil Size The variety of coil widths the machine can handle.
Density Array The thickness of silicon steel that the device can slit.
Slitting Speed The speed at which the machine can slit the product.
Variety of Slits Just how several slits the device can make simultaneously.
Tolerance The accuracy degree of the slit sizes.

3. Technical Improvements

Innovations in modern technology have presented features like automated control systems, accuracy-guiding systems, and top-quality slitting devices that improve the accuracy and speed of slitting procedures. Select equipment that incorporates contemporary technology to utilize these advantages, guaranteeing exceptional high quality and performance in your slitting processes.

4. Upkeep and Assistance

Regular upkeep is necessary for the longevity and efficiency of your slitting line. Select a slitting line that is not just resilient but includes thorough after-sales sustain and a very easy schedule of extra components. In addition, consider the ease of maintenance and whether your team has the technical know-how to deal with regular upkeep or if specialist service is required.

5. Vendor Track Record and Solution

The credibility of the supplier can significantly influence the high quality and reliability of the slitting line. Select suppliers known for their top-quality workmanship and exceptional customer support. Research their market visibility and speak to existing clients about their experiences.

6. Price Factors to Consider

Finally, while cost should not be the only factor to affect your decision, it’s certainly an important one. Balance your spending plan with the attributes and the top quality of the slitting line. Take into consideration the complete price of ownership, consisting of upkeep, parts, and not simply the preliminary procurement cost.

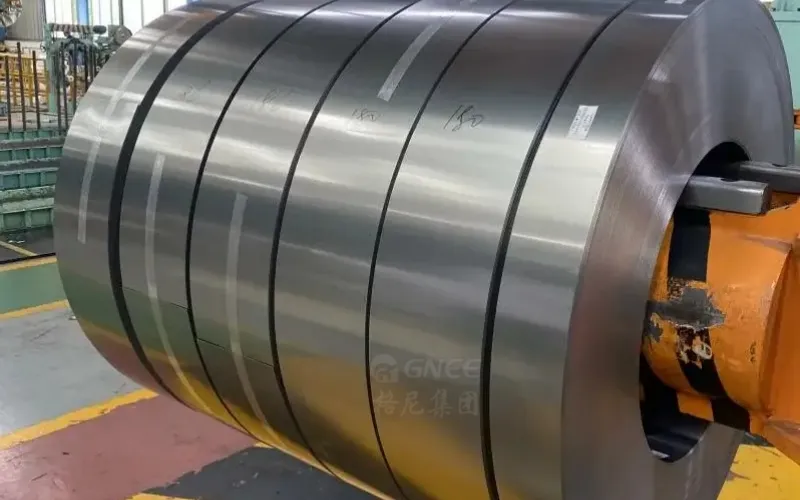

silicon steel strips in the factory



FAQs about Silicon Steel Slitting Lines

1. What is the primary function of a silicon steel slitting line?

The primary function of a silicon steel slitting line is to uncoil large silicon steel rolls, slit them into desired widths, and then recoil the strips. This process is vital for achieving the precise dimensions required for specific applications, with minimal damage to the material’s magnetic properties.

2. What are the key components of a silicon steel slitting machine?

The key components of a silicon steel slitting machine include the uncoiler, slitter, scrap winder, recoiler, control system, and tension stands. Each component plays a pivotal role in the efficiency and quality of the slitting process.

3. What are the advancements in silicon steel slitting technology?

Advancements in silicon steel slitting technology include the integration of automation and control systems, enhanced blade materials and coating technologies, improved slit width tolerances, increased line speeds and efficiency, and a focus on reducing environmental impact. These advancements have revolutionized the efficiency and precision of silicon steel slitting.

4. What are the useful maintenance tips for silicon steel slitting lines?

Some maintenance tips for silicon steel slitting lines include regular inspection and cleaning, lubrication of moving parts, blade and tooling maintenance, calibration and alignment, preventive and predictive maintenance, training and documentation, and electrical system checks. Proper maintenance is crucial for the operational efficiency and longevity of the machinery.

5. How can I choose the right silicon steel slitting line for my needs?

When choosing a silicon steel slitting line, consider factors such as understanding your production requirements, key specifications of the machine, technological advancements, maintenance and support, vendor reputation and service, and cost considerations. By carefully analyzing these factors, you can select a slitting line that meets your production demands and contributes to the efficiency and quality of your operations.
