Silicon steel, also known as electrical steel, is a specialized type of steel that contains silicon as a primary alloying element. This material is widely used in the manufacturing of electrical components, particularly in transformers, motors, and generators, due to its excellent magnetic properties. The process of punching silicon steel involves creating precise shapes and sizes from sheets of silicon steel, which are then used in various electrical applications. The blog will explore the punching process of silicon steel, along with its applications and the advantages of punching silicon steel in electrical engineering.
Silicon steel, also known as electrical steel, is a specialized type of steel that contains a small percentage of silicon (typically 0.5% to 6.5%). This alloy is primarily used in the manufacturing of electrical devices due to its superior magnetic properties. What’s more, silicon steel also maintains good mechanical strength and ductility, allowing it to be easily formed and punched into various shapes without compromising its structural integrity.
Silicon steel punching refers to the process of cutting silicon steel into specific shapes or components, typically for use in electrical devices like transformers and electric motors. Here’s an overview of the punching process, considerations, and applications:
Material Preparation
Silicon steel sheets are prepared by cutting them to the desired dimensions. The thickness of the sheets can vary depending on the specific application.
Tooling
Punch and Die: Specially designed punches and dies are used to cut the silicon steel sheets. The tooling must be precise to avoid damaging the magnetic properties of the steel.
Die Design: The die needs to be designed carefully to minimize burr formation and edge damage.
Punching Process
Punching: the silicon steel sheet is placed between the punch and die. When the punch is pressed down, it penetrates the sheet, creating the desired shape. The force applied during this process must be carefully controlled to avoid damaging the material.
Speed and Pressure: Parameters like speed, force, and stroke length must be optimized to ensure clean cuts while maintaining the integrity of the material.
Post-punching Treatment
Deburring and Finishing: After punching, the edges of the punched parts may be sharp or rough. Deburring processes are employed to smooth the edges and ensure that the parts are safe to handle and fit for their intended applications.
Cleaning: After deburring, the components might need to be cleaned to remove any debris or burrs that could affect performance.
Coating: Some components may require reapplication of insulation coatings.
Magnetic Performance: The punching process should avoid altering the magnetic properties of the steel. This can be affected by heat generated during cutting or any post-processing treatments.
Edge Quality: Clean edges are crucial to minimize energy losses caused by flux leakage. Burrs should be minimized through proper tooling and processing.
Dimensional Tolerance: High precision is essential for fitting components accurately within electrical devices. Tight tolerances help ensure optimal performance.
Vibration and Noise: Silicon steel components may produce vibrations and noise if not designed and cut properly. This is particularly important in electric motors and transformers.
Silicon steel punched components are used in a variety of electrical applications, including:

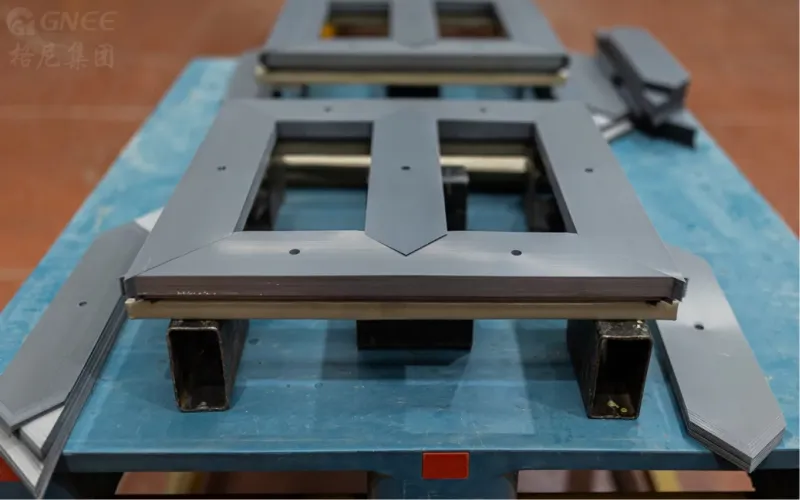

Transformers: Silicon steel is commonly used in the cores of transformers. Punched laminations are stacked together to form the core, which enhances the efficiency of the transformer by reducing energy losses.
Electric Motors: Punched silicon steel is used in the stator and rotor cores of electric motors. The high magnetic permeability of silicon steel helps to improve the performance and efficiency of the motor.
Generators: Similar to motors, silicon steel is used in the cores of generators. Punched components help to create a magnetic field that is essential for the generation of electricity.
Inductors and Chokes: Silicon steel is also used in inductors and chokes, where it helps to store energy in magnetic fields and filter electrical signals.
Magnetic Shields: Punching can create specific shapes used in magnetic shielding applications.
It offers several main advantages, including:
Efficiency: The punching process is quick and can produce large quantities of components with consistent quality.
Customization: Allows for the creation of various shapes and sizes tailored to specific applications.
Cost-effectiveness: When managed properly, punching can be a cost-effective method for producing high-precision components.
Reduced Waste: Efficient nesting in sheet layouts maximizes material usage and minimizes waste.
While silicon steel offers many advantages, there are also challenges associated with its use:
Brittleness: Silicon steel can be more brittle than other types of steel, which may pose challenges during the punching process. Care must be taken to avoid cracking or breaking the material.
Cost of Raw Materials: The cost of silicon and the production of high-quality silicon steel can be significant, impacting the overall cost of finished products.
Environmental Considerations: The production of silicon steel involves energy-intensive processes, which can have environmental implications. Manufacturers are increasingly looking for ways to reduce their carbon footprint and improve sustainability.
As technology continues to advance, the future of silicon steel punching is likely to be influenced by several trends:
Automation and Robotics: The integration of automation and robotics in the punching process can improve efficiency, precision, and consistency in the production of silicon steel components.
Advanced Materials: Research into new alloys and materials may lead to the development of silicon steel with enhanced properties, further improving its performance in electrical applications.
Sustainability Initiatives: Manufacturers are increasingly focusing on sustainability, exploring ways to reduce waste and energy consumption in the production of silicon steel and its components.
Silicon steel punching is a critical step in the manufacturing of electrical components used in various devices. The unique properties of silicon steel, combined with the precision of the punching process, enable the production of efficient and effective electrical devices. As technology evolves, the industry will continue to adapt and innovate, ensuring that silicon steel remains a vital material in the field of electrical engineering.
