Toroidal Laminated Core vs Other Core Types

In the realm of electrical engineering, the choice of core type is a crucial consideration when designing transformers and inductors. One such core type that has garnered significant attention and acclaim is the toroidal laminated core. Its unique shape and construction offer numerous advantages over other traditional core types, making it an enticing option for various applications. In this blog, we will mainly explore the toroidal laminated cores and compare them to other core types to understand their exceptional characteristics.

Definition of Toroidal Laminated Core

Toroidal laminated core refers to a donut-shaped magnetic core constructed from multiple layers or laminations of high-permeability materials such as silicon steel or ferrite. These laminations are tightly wound together to form a continuous ring, creating a closed magnetic circuit.

The distinctive shape of the toroidal core sets it apart from other traditional cores like E-cores, U-cores, and C-cores. Instead of having sharp edges or corners as seen in those conventional designs, the toroid possesses a smooth and continuous circular profile.

Toroidal Laminated Core vs E-Core

The E-core, also known as the E laminated core, is a widely used magnetic core type due to its simplicity and versatility. It consists of two E-shaped laminations, often made of silicon steel, that are stacked together to form a closed magnetic circuit.

This design allows for an efficient flux path and provides an ideal solution for transformers and inductors operating at low frequencies. The E-core’s applications span across various industries such as power electronics, telecommunications, and renewable energy systems.

Advantages:

Compared to toroidal laminated cores, the E-core offers certain advantages worth considering. Firstly, it enables easy winding of the coil with its open structure. This simplifies manufacturing processes and reduces labor costs.

Additionally, the air gap between the two E-shaped laminations can be adjusted to control the core’s inductance, making it adaptable to different design requirements. Due to their flat shape, E-cores can be conveniently mounted on PCBs or other flat surfaces.

Disadvantages:

Despite its merits, the E-core does have some drawbacks when compared to toroidal laminated cores. One significant limitation is its increased magnetic leakage flux caused by the air gaps in the core structure.

This leakage can result in reduced overall efficiency and increased electromagnetic interference (EMI). Moreover, because of its shape and larger air gaps, eddy current losses tend to be higher compared to toroidal cores.

Toroidal Laminated Core vs U-Core

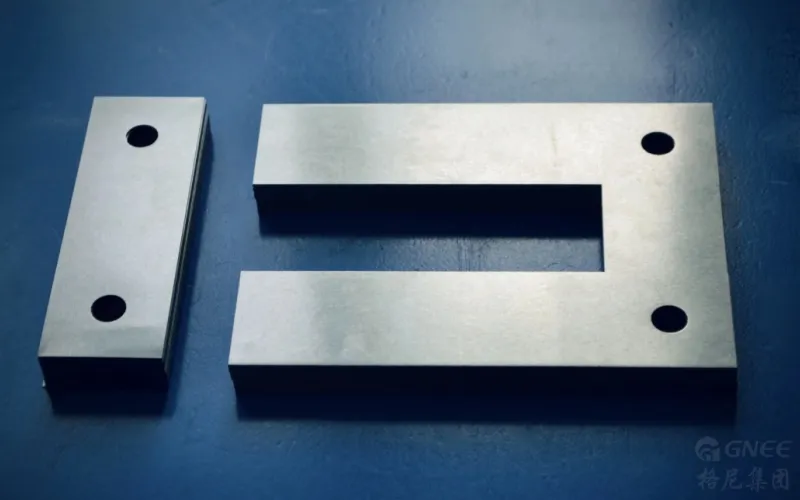

The U-core is another alternative to toroidal laminated cores that deserves attention. As its name suggests, this core type takes on a U-shaped geometry consisting of two separate parts – a U-shaped iron core along with an additional yoke piece that completes the magnetic circuit construction.

Advantages:

The U-core offers several advantages over toroidal laminated cores. Its design allows for easy assembly since winding coils around a U-shaped iron core is less complex than working with toroids or E-cores. Additionally, U-cores have lower eddy current losses compared to both toroidal and E-cores due to their reduced magnetic path length.

Disadvantages:

However versatile they may be; U-cores do have some limitations relative to toroidal laminated cores. One notable drawback is their relatively larger size compared to other core types like toroids or C-cores (shell cores). This bulkiness restricts their application in space-constrained electronic devices where compactness is crucial for optimal functionality.

Toroidal Laminated Core vs C-Core (Shell Core)

The C-core or shell core stands out among these alternatives as it represents yet another viable option worth considering alongside toroidal laminated cores.

Advantages:

C-cores possess unique advantages that differentiate them from other core types including toroids or U-cores. Their hollow cylindrical structure allows for more efficient cooling due to improved airflow within the coil windings—an important factor when dealing with high-power applications that require effective heat dissipation strategies.

Disadvantages:

On the downside, C-cores do present some disadvantages when comparing them directly with toroidal laminated cores: First off is their inherent complexity during manufacturing processes since shaping multiple separate pieces into a single shell requires precise alignment—a factor that increases production time and cost considerably. Additionally, due to their shape comprising multiple individual segments instead of one continuous loop like in most other core types discussed here—magnetic flux distribution can sometimes become non-uniform leading to potentially adverse effects on overall performance efficiency.
