Amorphous cores, also known as non-crystalline cores, have gained significant attention in the field of electrical engineering and materials science due to their unique properties and advantages over traditional crystalline materials. These cores are primarily used in transformers, inductors, and other electromagnetic devices, where their ability to reduce energy losses and improve efficiency is highly valued. In this blog, we mainly explore the properties, manufacturing processes, and applications of amorphous cores, highlighting their role in modern electrical systems.



What Are Amorphous Cores?

Amorphous cores are made from materials that lack a long-range ordered crystalline structure. Instead, they possess a disordered arrangement of atoms, which gives them distinct magnetic and electrical properties. The most common materials used for amorphous cores are iron-based alloys, often combined with elements such as silicon, boron, and phosphorus. These materials are typically produced by rapidly cooling molten metal, a process known as quenching, which prevents the formation of a crystalline structure.

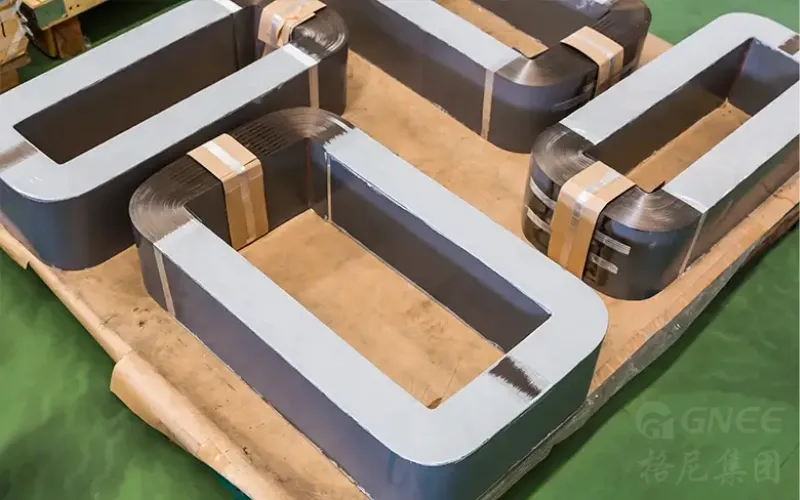

Amorphous Cores



Properties of Amorphous Cores

1. Low Core Losses

One of the most significant advantages of amorphous cores is their low core losses, which are primarily due to hysteresis and eddy currents. The disordered atomic structure of amorphous materials results in lower hysteresis losses compared to crystalline materials. Additionally, the high electrical resistivity of amorphous alloys reduces eddy current losses, making them ideal for high-frequency applications.

2. High Magnetic Permeability

Amorphous cores exhibit high magnetic permeability, which allows them to efficiently channel magnetic flux. This property is crucial for transformers and inductors, as it enhances their performance and reduces the size of the core required for a given application.

3. Temperature Stability

Amorphous materials generally have good thermal stability, maintaining their magnetic properties over a wide temperature range. This stability is essential for applications in environments with fluctuating temperatures.

4. Reduced Noise

The unique structure of amorphous cores contributes to lower acoustic noise levels in transformers and inductors. This characteristic is particularly beneficial in applications where noise reduction is critical, such as in residential and commercial power systems.



Manufacturing Processes of Amorphous Cores

The production of amorphous cores involves several key steps:

1. Alloy Preparation

The first step is to create an alloy with the desired composition. This typically involves melting the raw materials, such as iron, silicon, and boron, in a furnace.

2. Rapid Cooling

Once the alloy is molten, it is rapidly cooled to prevent crystallization. This can be achieved through various methods, including:

Quenching: Pouring the molten alloy onto a rapidly rotating drum, which forms a thin ribbon of material as it cools.

Splat Cooling: Spraying the molten alloy onto a cold surface, creating a thin film that solidifies quickly.

Casting: Using a mold to shape the material while cooling it rapidly.

3. Heat Treatment

After the initial cooling, the amorphous material may undergo heat treatment to relieve internal stresses and improve magnetic properties. This process is carefully controlled to avoid crystallization.

4. Core Formation

The final step involves cutting and shaping the amorphous material into the desired core geometry, such as toroidal or rectangular shapes, depending on the application.

Amorphous Core Manufacturing Process



Applications of Amorphous Cores in Electrical Engineering

Amorphous cores are used in a variety of applications, primarily in the electrical and electronics industries. Here are some typical examples for reference.

1. Power Distribution Transformers

The use of amorphous core materials in power distribution transformers has revolutionized the energy industry. One significant advantage is the remarkable efficiency improvement achieved through the reduced core losses compared to traditional silicon steel cores. The enhanced magnetic properties of amorphous alloys result in lower eddy current losses and hysteresis losses, leading to higher energy efficiency and reduced operating costs for power distribution systems.

2. Sensors and Actuators

Amorphous core materials are ideal for applications in sensors and actuators due to their high sensitivity to magnetic fields. The unique magnetic properties of these alloys enable sensors to detect minute changes in magnetic fields with exceptional precision.

This high sensitivity allows for the development of advanced sensor technologies that are crucial for industries such as healthcare, automotive, and aerospace. Additionally, actuators utilizing amorphous core materials provide precise control and responsiveness in various mechanical systems.

3. Magnetic Shielding

Magnetic shielding using amorphous core materials plays a vital role in reducing electromagnetic interference (EMI) in electronic devices and sensitive equipment. The ability of these alloys to channel and absorb magnetic fields effectively helps protect sensitive components from external electromagnetic disturbances that can cause malfunctions or data corruption. By incorporating amorphous core shields, industries can maintain signal integrity, improve device performance, and ensure reliability in critical applications.



Conclusion

Amorphous cores represent a significant advancement in the field of electrical engineering, offering unique properties and advantages that enhance the performance of transformers, inductors, and other electromagnetic devices. Their low energy losses, high magnetic permeability, and compact design make them an attractive choice for a wide range of applications. As technology continues to evolve, the demand for energy-efficient solutions will likely drive further research and development in amorphous materials, paving the way for even more innovative applications in the future.
