Silicon steel, also known as electrical steel or transformer steel, is an alloy primarily made of iron and silicon. It is highly valued for its magnetic properties and is used in transformers, motors, generators, and other electrical devices. However, along with silicon steel’s magnetic properties, it is famous for its thermal properties. The thermal properties of silicon steel usually contain several main aspects, including thermal conductivity, thermal expansion, specific heat capacity of silicon steel, and thermal stability. Let’s see them one by one below.
Silicon steel, also known as electrical steel or transformer steel, is a most esteemed alloy in the electrical industry. Comprising primarily of iron and silicon, with a smattering of other elements like carbon, manganese, and aluminum, this alloy holds a special place. During the manufacturing process of silicon steel, the composition and properties of the alloy are meticulously regulated to ensure optimal performance. The silicon content typically ranges from 1% to 4.5%, with higher silicon levels resulting in greater resistivity and diminished core losses. The incorporation of other elements serves to refine the grain structure and enhance the magnetic properties of the steel. The resultant material is often fashioned into thin laminations to curtail further energy losses caused by eddy currents. These laminations are then stacked together, forming the core of electrical devices. This core provides a conduit for the magnetic flux, thus facilitating efficient energy conversion.
In a word, silicon steel lies in its elevated magnetic permeability, low coercivity, and low core loss. These qualities make it the perfect material for applications requiring efficient energy transfer.

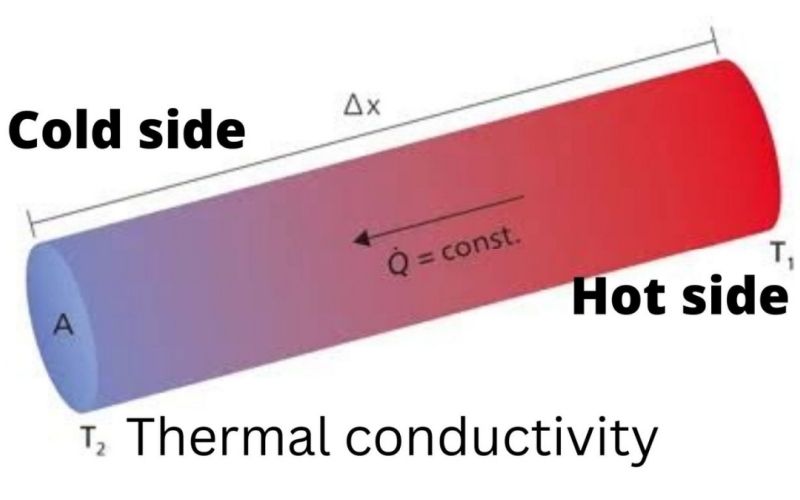

The thermal conductivity of silicon steel is a matter of great importance, as it governs the material’s ability to conduct heat. A higher thermal conductivity is highly desirable, as it allows for efficient heat transfer, rendering silicon steel a material of choice in a multitude of applications. However, the thermal conductivity of silicon steel is influenced by several factors, including the silicon content, grain size, and impurities present within the material.
1. Silicon content. silicon content, in particular, plays a pivotal role in determining the thermal conductivity of silicon steel. Generally, higher concentrations of silicon tend to result in improved thermal conductivity. This relationship between silicon content and thermal conductivity is a crucial consideration in the production and selection of silicon steel.
2. Grain size of silicon steel. Furthermore, the grain size of silicon steel also impacts its thermal conductivity. Smaller grain sizes provide superior heat transfer paths, thereby enhancing the material’s thermal conductivity. Hence, the control and manipulation of grain size are vital in optimizing the thermal properties of silicon steel.
3. Impurities in silicon steel. Impurities present in silicon steel can impede the flow of heat and consequently reduce its thermal conductivity. Therefore, the purity of the material is of utmost significance in ensuring its optimal thermal performance.
Accurately measuring the thermal conductivity of silicon steel necessitates the utilization of various techniques. Among these methods are the transient plane source technique and the laser flash method. These techniques enable researchers and engineers to precisely assess and quantify the thermal conductivity of silicon steel, facilitating its effective utilization in diverse applications.
The specific heat capacity is a measure of the amount of heat energy required to raise the temperature of a material by a certain amount. In the case of silicon steel, several factors influence its specific heat capacity. One such factor is the silicon content in the steel. It has been observed that a higher silicon content generally leads to a higher specific heat capacity. Another important factor is none other than temperature itself. Yes, the specific heat capacity of silicon steel tends to decrease with increasing temperature.
1. Silicon content. It has been discovered that silicon possesses a higher specific heat capacity compared to iron, which is the primary component of steel. Therefore, as the silicon content in silicon steel increases, so does its specific heat capacity. This factor is of utmost importance in various applications where heat dissipation or thermal management is of great significance.
2. Temperature. Temperature is another vital factor that affects the specific heat capacity of silicon steel. It is a well-known fact that the specific heat capacity of most materials decreases with increasing temperature. This is also observed in silicon steel! As the temperature rises, the specific heat capacity of silicon steel tends to decrease. It is indeed crucial, to consider this behavior when designing systems that involve silicon steel components operating at different temperature ranges.
Now, let us turn our attention to the various methods available for measuring the specific heat capacity of silicon steel.
One commonly used technique is none other than differential scanning calorimetry (DSC). This marvelous method measures the heat flow into or out of a sample as a function of temperature.
Another method is the heat pulse method. In this method, a short heat pulse is applied to the material, and the resulting temperature change is carefully measured. These measurement methods, allow for accurate determination of the specific heat capacity of silicon steel, enabling its proper utilization in various industrial applications.

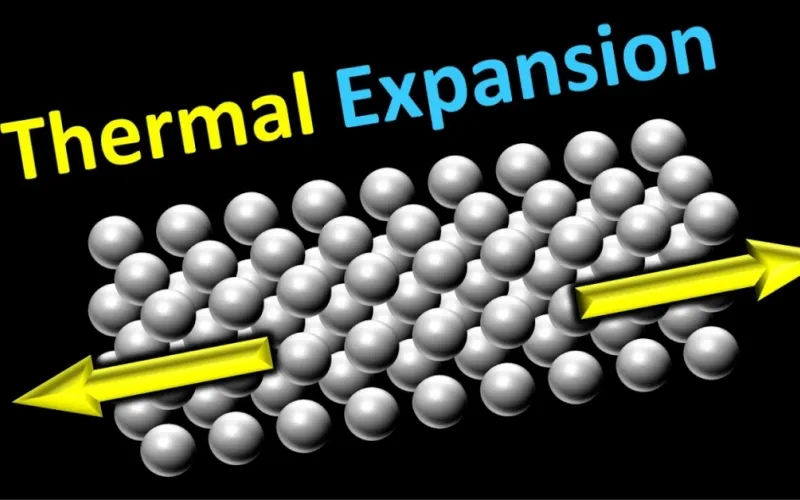

Thermal expansion occurs when materials gracefully expand or contract in response to the whims of temperature. In the realm of silicon steel, a multitude of factors sway its thermal expansion behavior. Foremost, the presence of silicon within this steel alloy holds the power to shape its expansion. A higher silicon content tends to yield lower coefficients of thermal expansion. Yet, temperature itself, a capricious and ever-changing force, also plays a significant role. As the temperature ascends, so too does the expansive nature of silicon steel. Thus, comprehending the coefficient of thermal expansion becomes an essential pursuit, for it holds the key to divining the dimensional changes that befall silicon steel with varying thermal conditions.
Thermal stability, a crucial property of silicon steel, refers to its ability to maintain its magnetic properties under high-temperature conditions. Understanding the factors that affect thermal stability is of utmost importance in optimizing the performance of silicon steel in various applications.
1. Silicon content. The content of silicon in steel does significantly impact its thermal stability. Higher silicon content generally improves the resistance to thermal aging, ensuring the material retains its magnetic properties at elevated temperatures.
2. Heat treatment. The processes of heat treatment employed during the manufacturing of silicon steel play a crucial role in its thermal stability. Proper heat treatment can enhance the strength of grain boundaries, reduce impurities, and optimize the microstructure, resulting in improved thermal stability.
The thermal stability of silicon steel directly affects its magnetic properties, electrical resistivity, and core loss. A high level of thermal stability ensures minimal degradation of these properties even under prolonged exposure to elevated temperatures. This is particularly important in transformers, motors, and other electrical devices where the material is subjected to the heat generated during operation.
The thermal properties of silicon steel play a very important role in its actual applications. Its thermal properties usually contain thermal conductivity, thermal expansion, specific heat capacity of silicon steel, and thermal stability. Knowing these four main parts of silicon steel’s thermal properties is very helpful in making the final decision when you are choosing silicon steel. If you still have some questions, welcome to contact our technical team.
