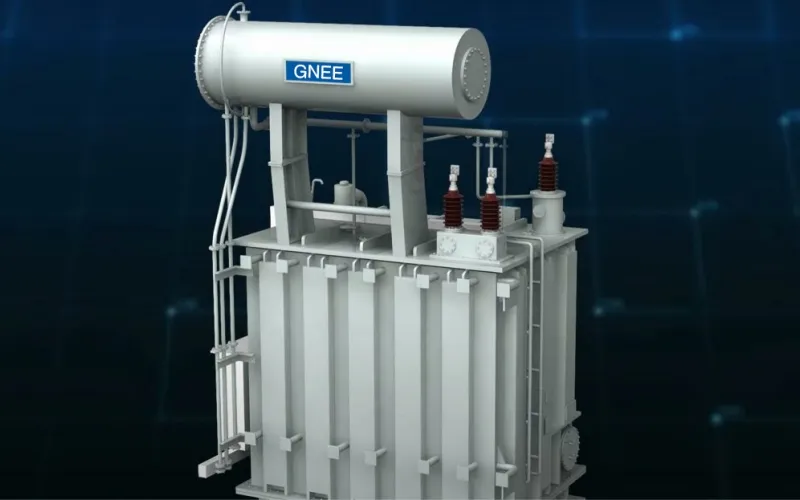

What is the Role of Transformer?

Transformers play a crucial role in electrical systems, primarily focusing on modifying voltage levels to suit different needs throughout power distribution networks. Here’s a detailed overview of their roles, types, applications, and more.

6 Main Role of a Transformer

Transformers play a crucial role in electrical engineering by transferring electrical energy between circuits through electromagnetic induction. Here are the key functions and purposes of transformers:

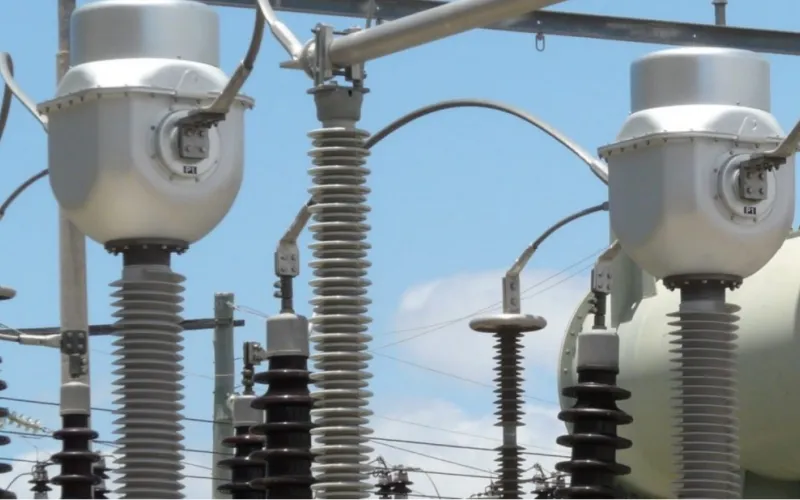

1. Voltage Transformation

Transformers are primarily used to change the voltage levels of alternating current (AC) electricity. They can either step up (increase) or step down (decrease) voltage levels. For instance, power plants use step-up transformers to raise the voltage for long-distance transmission, which minimizes energy loss due to lower currents. Conversely, step-down transformers reduce the voltage to safer levels for use in homes and businesses.

2. Energy Transfer

A transformer transfers electrical energy from one circuit to another without changing the frequency of the current. This is achieved through two coils of wire (primary and secondary) wound around a magnetic core. When an alternating current flows through the primary coil, it creates a varying magnetic field that induces a current in the secondary coil.

3. Galvanic Isolation

Transformers can provide galvanic isolation between circuits, which is essential for safety and preventing ground loops. This isolation helps protect sensitive equipment from voltage spikes and electrical noise.

4. Efficiency in Power Distribution

By allowing high-voltage transmission, transformers reduce the current flowing through power lines, which in turn decreases resistive losses (I²R losses) in the transmission lines. This efficiency is vital for the effective distribution of electricity over long distances.

5. Signal Processing

In addition to power applications, transformers are also used in signal processing circuits to couple different stages of a circuit, ensuring that signals can be transferred effectively without interference.

6. Multiphase Systems

Transformers are crucial in polyphase systems (like three-phase electrical systems), allowing for balanced loads and efficient power distribution.

In summary, transformers are essential components in the electrical grid, enabling efficient power transmission and distribution while ensuring safety and functionality in various applications.

What is a Transformer?

In electrical engineering, a transformer is a device that transfers electrical energy between two or more circuits through electromagnetic induction. The primary functions of a transformer are to increase (step-up) or decrease (step-down) voltage levels. This adjustment is crucial for efficient power transmission and distribution across vast networks.

The basic components of a transformer include:

Primary Coil: Receives electrical energy from the source.

Secondary Coil: Delivers the transformed electrical energy to the load.

Core: Made of ferromagnetic material (like silicon steel), it facilitates the magnetic linkage between the primary and secondary coils.

How Transformers Work

Inducing Voltage: When an alternating current (AC) flows through the primary coil, it creates a varying magnetic field around it.

Magnetic Flux: This magnetic field induces a magnetic flux through the core, which links to the secondary coil.

Induction in Secondary Coil: The changing magnetic flux induces a voltage in the secondary coil based on Faraday’s Law of Electromagnetic Induction.

Voltage Transformation: The voltage can be increased or decreased in the secondary coil, depending on the ratio of turns in the primary coil to the secondary coil. This ratio determines whether the transformer is a step-up or step-down transformer.

Different Types of Transformers

Electrical transformers are primarily classified based on their purpose, construction, and usage. Let’s explore them below.

Based on Purpose:

Step-Up Transformer: Increases voltage from primary to secondary, used in power generation stations.

Step-Down Transformer: Decreases voltage from primary to secondary, commonly used in residential and commercial areas.

Based on Construction:

Core Type Transformer: The windings are placed around the core, common in power transformers.

Shell Type Transformer: The core surrounds the windings, providing better shielding and is typically used in high-voltage scenarios.

Based on Usage:

Power Transformer: Designed for high-voltage transmission to maximize efficiency at full load.

Distribution Transformer: Used in distribution networks for end-consumer connectivity at lower voltages.

Instrument Transformer: Includes current transformers and voltage transformers, used for measurement and protective relay purposes in circuits.

Special Types:

Isolation Transformer: Designed to decouple two circuits, allowing AC power transfer without connecting the circuits directly.

Auto Transformer: Uses a single winding as both primary and secondary, offering efficient voltage conversion.

Three-Phase Transformer: Used in three-phase power systems, common in industrial and large commercial applications.

Maintenance and Safety of Transformers in Electrical Engineering

Transformers are vital for reliable power distribution and require regular maintenance to operate efficiently and safely. Here are key practices and considerations:

Regular Maintenance Tasks

Inspection and Testing: Regular inspections are conducted to check for physical and operational integrity. Tests might include insulation resistance testing, transformer oil testing for dielectric strength, and checks for any physical damage or leaks.

Oil Maintenance: Transformer oil acts as an insulator and coolant. Keeping it free from moisture and particulates is crucial. Oil quality is regularly tested, and oil may be filtered or replaced if necessary.

Thermal Imaging: Infrared cameras can detect overheating parts before they fail, allowing for preventive maintenance.

Bushings Maintenance: Transformer bushings should be inspected for cracks or leaks, as they are critical for the safety and functionality of the transformer.

Load Management: Ensuring transformers are not consistently operating above their rated capacity is crucial for longevity and safety.

Safety Measures When Using Transformer

Protective Relays: These devices monitor the transformer’s performance and can trigger alarms or disconnect the transformer from the circuit if abnormal conditions like overheating or high voltage are detected.

Grounding: Proper grounding of transformers is essential to prevent electrical shocks and ensure the safe dissipation of stray currents.

Surge Protection: Installing surge protectors to guard against voltage spikes that can damage the transformer.

Fire Safety: Implementing fire safety measures, including maintaining clearances around transformers and using fire-resistant transformer oil where necessary.

Conclusion

Transformers are essential components in the electrical power industry, enabling the efficient transmission and distribution of electricity by adjusting voltage levels according to the needs of the power grid and end-users. Their ability to efficiently change voltage levels is fundamental to the functionality of modern electrical systems, impacting everything from industrial machinery to everyday household appliances.
