Grain oriented silicon steel core, often referred to as grain oriented electrical steel core, is a specialized type of steel alloy designed for use in electrical equipment such as transformers, motors, and inductors. Made from grain oriented silicon steel, this material exhibits superior magnetic properties compared to conventional steels, making it an essential component in the efficient operation of electrical devices. Besides, the distinctive grain orientation in GO silicon steel contributes to optimizing magnetic flux distribution and reducing energy losses, thereby enhancing the overall performance and efficiency of electrical engineering systems.
What is Grain Oriented Silicon Steel?

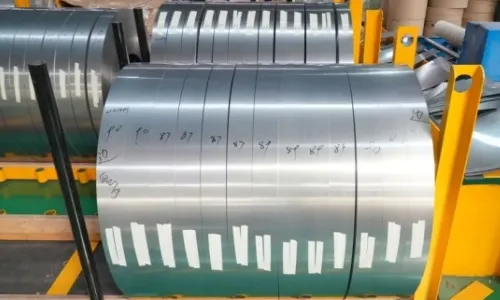

Grain oriented silicon steel, often referred to as GOSS, is a specialized form of silicon steel that is widely used in the production of electrical cores of many magnetic applications.
It contains approximately 3% silicon, which significantly improves its electrical and magnetic properties compared to regular non-oriented silicon steel. This is specifically suited for applications where optimizing magnetic flux is crucial, such as in transformers and inductors.
The term “grain oriented” refers to the alignment of the crystalline structure of the steel, which is oriented in a specific direction to enhance magnetic performance.
| Product | Grain Oriented Silicon Steel Core |
| Standard | AISI, ASTM, GB, JIS, DIN |
| Raw Material | Grain oriented (GO) silicon steel |
| Silicon Content | around 3% |
| Shape | Toroidal, rectangular, C-type, E-I, U-I, etc. |
| Package | Standard export package |
Grain oriented silicon steel cores offer several key advantages over conventional steel cores when used in electrical devices.
1. Superior Magnetic Performance
Grain oriented silicon steel core is characterized by its highly directional magnetic properties achieved through a controlled manufacturing process. This process involves cold rolling the steel at specific temperatures to align its crystalline structure along the rolling direction, resulting in preferential orientation of magnetic domains.
As a result, the material exhibits significantly lower core losses and higher magnetic permeability compared to non-oriented silicon steels. These unique characteristics make grain oriented silicon steel cores well-suited for applications requiring efficient magnetization and minimal energy dissipation.
2. Compact Design
Additionally, the high magnetic permeability of grain oriented silicon steel allows for smaller and lighter designs without sacrificing performance, which is especially important in modern applications. This means that transformers made with these cores can achieve higher power densities while maintaining smaller physical footprints compared to those using conventional materials.
3. Reduced Noise
The improved magnetic properties and meticulous lamination processing can largely reduce mechanical vibrations, leading to lower operational noise levels in applications.
4. Thermal Stability
Furthermore, grain oriented silicon steel exhibits superior magnetization characteristics under alternating current (AC) conditions due to its specialized crystal structure. This results in lower magnetizing currents required during operation, leading to improved overall efficiency and reduced heat generation within transformer cores.
5. Good Formability
While the primary focus is on magnetic properties, grain-oriented silicon steel also possesses adequate mechanical strength for core applications. The material can be processed and shaped into various core configurations without cracking or breaking, like E-I and C shapes.
6. Cost-effectiveness
While the initial cost may be higher than non-oriented silicon steel, the energy savings over time can offset this cost, making it a cost-effective choice.
Grain oriented silicon steel cores play a crucial role in enhancing the performance and efficiency of various electrical devices.
One primary application of these cores is in power transformers, where they serve as the key component for facilitating energy transfer between different voltage levels with minimal losses. By utilizing grain oriented silicon steel cores in transformers, engineers can achieve higher efficiency ratings and reduce operational costs over the long term.
Furthermore, grain oriented silicon steel cores find extensive applications in electric motors, generators, inductors, and other electromagnetic devices that require precise control over magnetic fields. The unique combination of high permeability and low core losses makes these cores ideal for applications where maintaining optimal efficiency is paramount.
Additionally, from industrial machinery to renewable energy systems, grain oriented silicon steel cores contribute significantly to improving overall system performance while minimizing energy wastage.
In a word, grain oriented silicon steel cores represent a critical advancement in materials science for electrical engineering applications due to their exceptional magnetic properties and efficiency-boosting characteristics.
